ProductsHigh performance textilesAluminised glass fabrics
Properties:

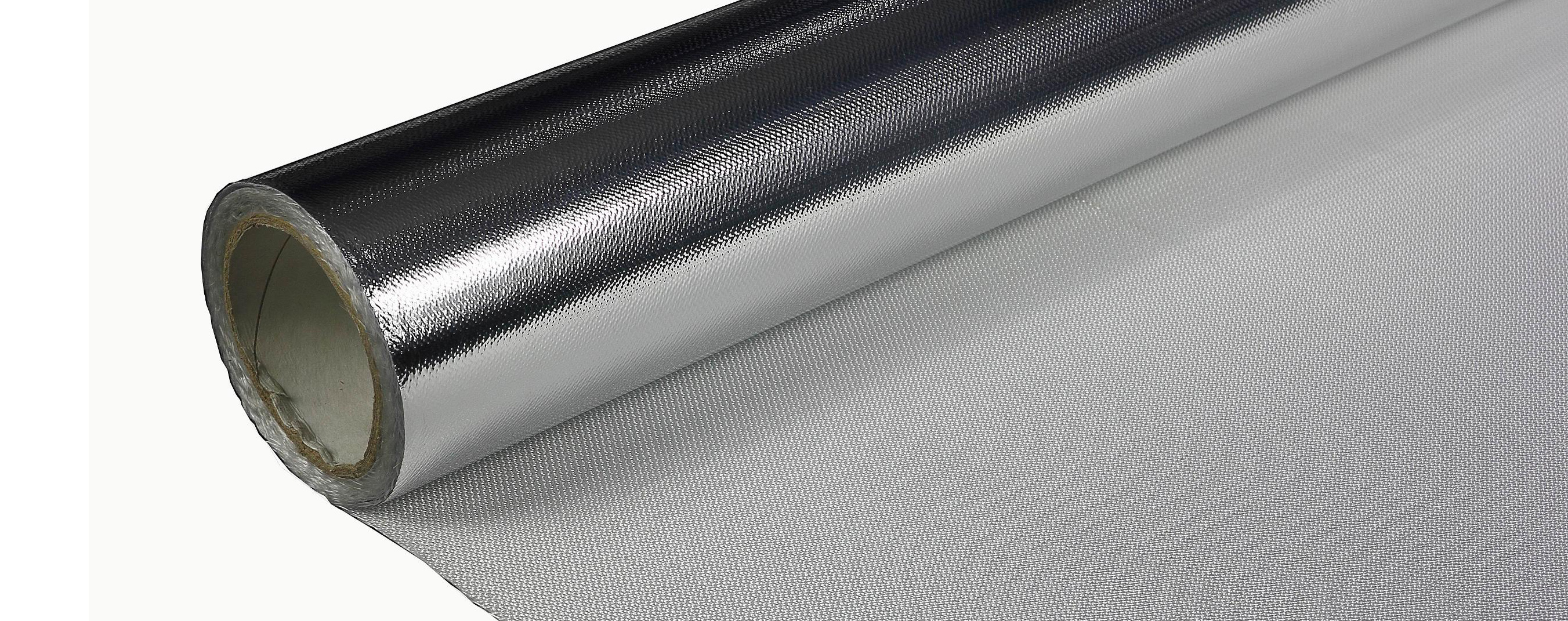

The combination of laminating an aluminum metallic/film heat shield to a layer of protective fiberglass insulation protects personnel or equipment by reflecting radiant heat.                              Suntex uses the high temperature adhesive to ensure the maximum working temperature up to 150 ℃.                                One side or both sides aluminum foil/film laminated available.                              Thickness of aluminum foils available from 0.2mm to 1.7 mm.                            Width of fabrics available from 1000mm to 1200mm.
Applications:
Heat-retardant curtains or screens.                              Thermal insulation covers, mattress and pads.                            Welding/fire protection.                            Safety cloth and apron.                            Width of fabrics available from 1000mm to 1200mm.

Recommended Specification:

StyleWeightThicknessColorCoatingTDSMSDS
g/m2oz/yd2mminch
GF200E-AL114-60015107.10.200.008SilverAluminum
GF600C-AL118-600365019.10.600.024SilverAluminum

TGF580-AL122-600564018.80.750.030SilverAluminum
GF430-AF110-600845013.20.390.015SilverAluminum
GF200-AF110-6009215
6.30.210.008SilverAluminum
