Properties:
Suntex welding blankets are made from premium fiberglass woven fabrics, special treated on one side or both sides. The blankets are well-suited for welding, grinding spark and spatter protection for both personnel and equipment when doing component assembly or manual brazing.

Suntex provides welding cloth in roll form or in prefabricated blankets. Blankets are hemmed with high temperature thread and can be grommetted. Suntex welding blankets are able to withstand temperature up to 12000C maximum, no itch to skin. Totally asbestos-free.

Sizes available from 3' x 3' (0.9m x 0.9m) to 10' x 10' (3m x 3m). Customized sizes are available.

How to choose welding blanket or cloth:
1.Select application.

General applications of welding blanket or cloth.

-Light duty: General purpose welding, light sparks and small spatter. Not recommended for horizontal application.

-Medium duty: Heavier welding, sparks, spatter and light slag.

-Heavy duty: Heavy sparks, spatter, slag and molten metal.

-Stress relief:  Choose soft materials recommended for Stress relief applications. The coated materials usually are not recommended for stress relief applications.                            2.Determine dimensions of area to be protected. Suntex provides welding cloth in roll form or in prefabricated blankets.Consider dimensions of area to be protected and determine what form is suitable.                            3.Select the finished blanket or cloth.

-Stiff material  coated material has better abrasion resistance. Stiffer to allow spatter and slag to roll off  easily.

-Soft material uncoated material is pliable. this material is easy to be draped over and wrapped around objects. it's usually use for stress relief applications.

-Weight and thickness of material  the heavier and thicker material provide better protection and take longer to burn through.

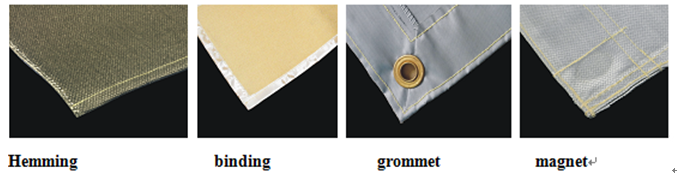

Suntex standard styles of blankets' selvedge:

Recommended Specification:

StyleWeightThicknessColorCoatingTDSMSDS
g/m2oz/yd2mminch
GF430-SI233-115357016.70.450.017GreySilicone
GF660C-PU223-201672021.20.720.028GreyPU
GF430C-PU213-203147017.30.430.017GreyPU
GF430-PU113-203046013.80.400.016GreyPU
TGF680P-AC235-3015816240.800.031BlackAcrylic
TGF1000P-GP235-5002110032.31.400.055BlackGraphite

TGF1000P-VE226-5008

107031.41.400.055YellowVermiculite

SL600-VE216-5021

620180.650.025YellowVermiculite

SL1200

1200361.200.047BrownHeat treat
